Description
Disinfection water nozzle module series are UVC LED-based water disinfection products that deliver reliable drinking water for consumer and commercial products. These products offer mercury free, environmental friendly disinfection that does not alter the taste or smell of drinking water. The application of the crowd: pregnant women, infants, the elderly, the infirm, and people who have high requirements on drinking water safety.
Model: RF-3185Y

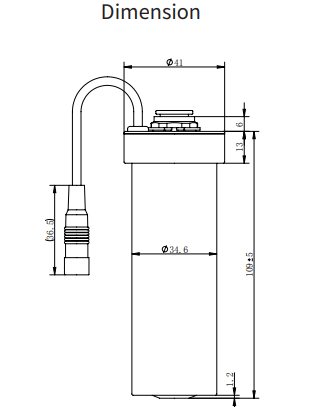

Size: 114mm× Φ40mm
Weight: 0.4kg
Flow Rate: ≤1.5L/min

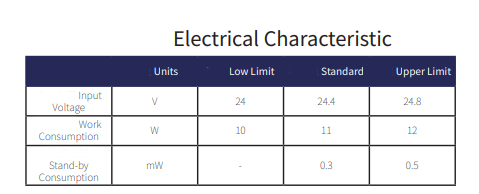

Power: 9W (three LED), 12W (four LED)
Input Voltage: 24VD
Electric Current: 500mA
Inlet Water Temperature: 5-45℃
Operation Temperature: 5-45℃
Storage Temperature: -10-80℃
Disinfection Rate: ＞99.99%

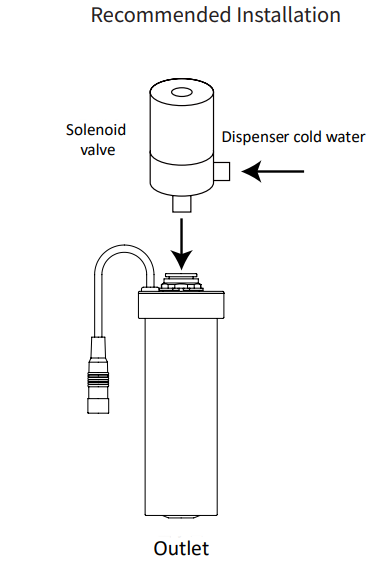

Usage: Turn on the module electricity, the UVC LED is on. After 2 seconds, the solenoid valve is on, we can take the water pass through directly. Turn off the water, the solenoid valve is off immediately. After 1 second, the module electricity is off, and the UVC LED is off at the same time.
